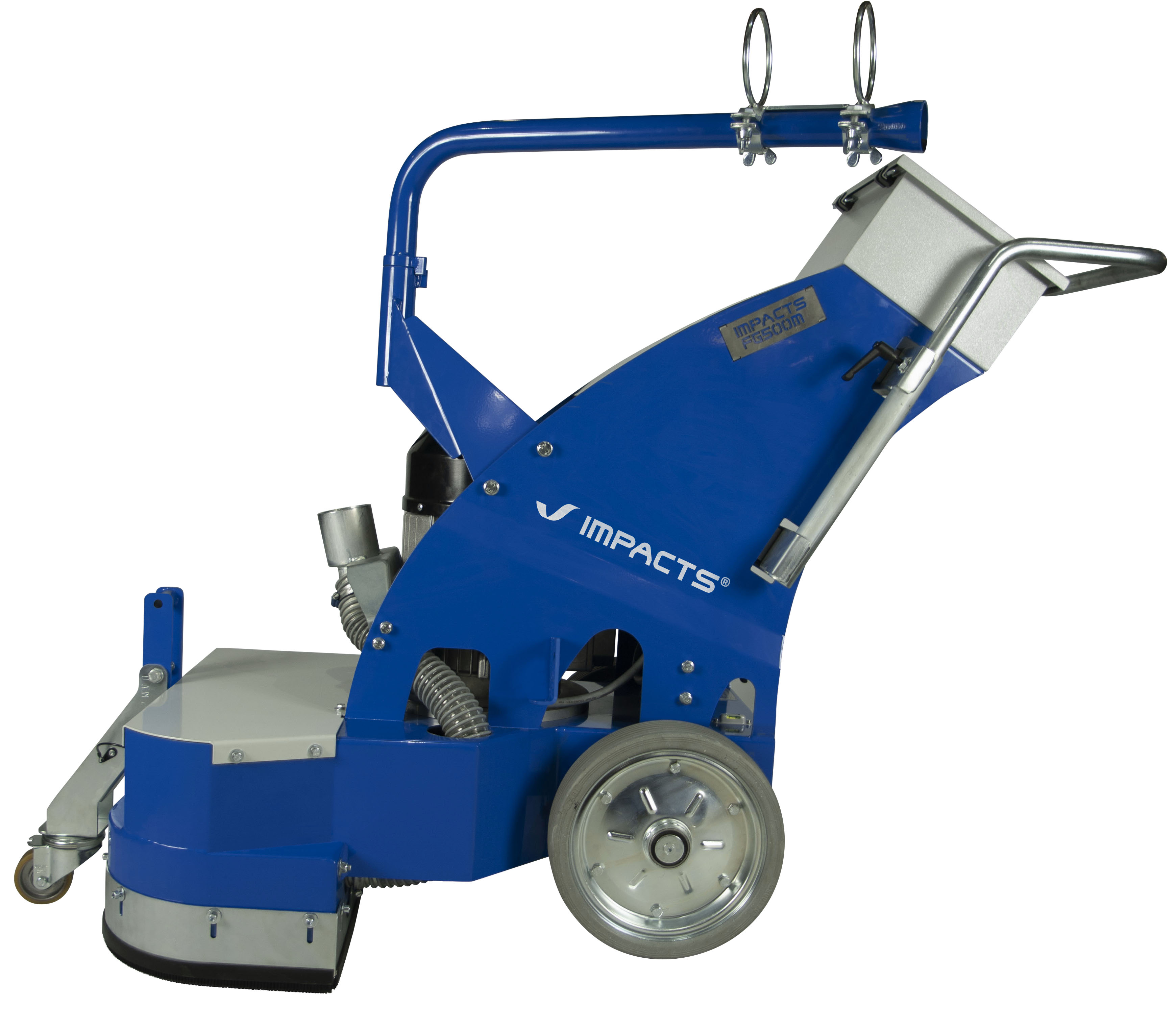

GRINDER FG500M

An extremely robust two-disc grinding machine.

The IMPACTS grinding machine FG500M is an extremely robust two-disc grinding machine. The consistent further development of our successful FG250.
The machine is equipped with the tried and tested “CLICKANGO” quick-change tool system. This enables not only a simple tool change, but also variable grinding pressure due to the different number of diamond segments.

Of course, with an integrated connection option for dust extraction.

Data sheet download (PDF)
  • Robust and compact design
  • CLICKANGO” quick tool change system
  • Easy handling
  • Efficient dust extraction

Model

FG500M

Width

2×250 mm

Travel

Manuell

Power Output

7,5 kW

Power supply

400 V, 50 Hz CEE-plug 16A

Dust hose

75mm

connection

L x W x H in mm

1488 × 645 × 1100

Weight

180 kg
